CADViewer Online Demo Resources

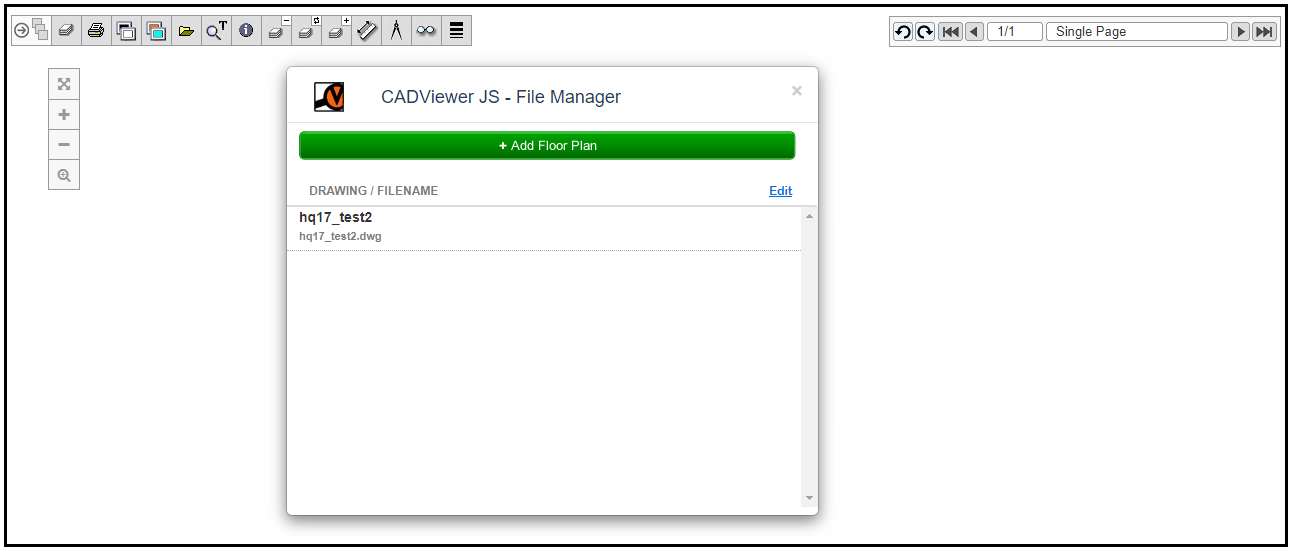

Test CADViewer by uploading your own drawings through the File Modal and view your drawings online. The full interface is activated in this demo version.

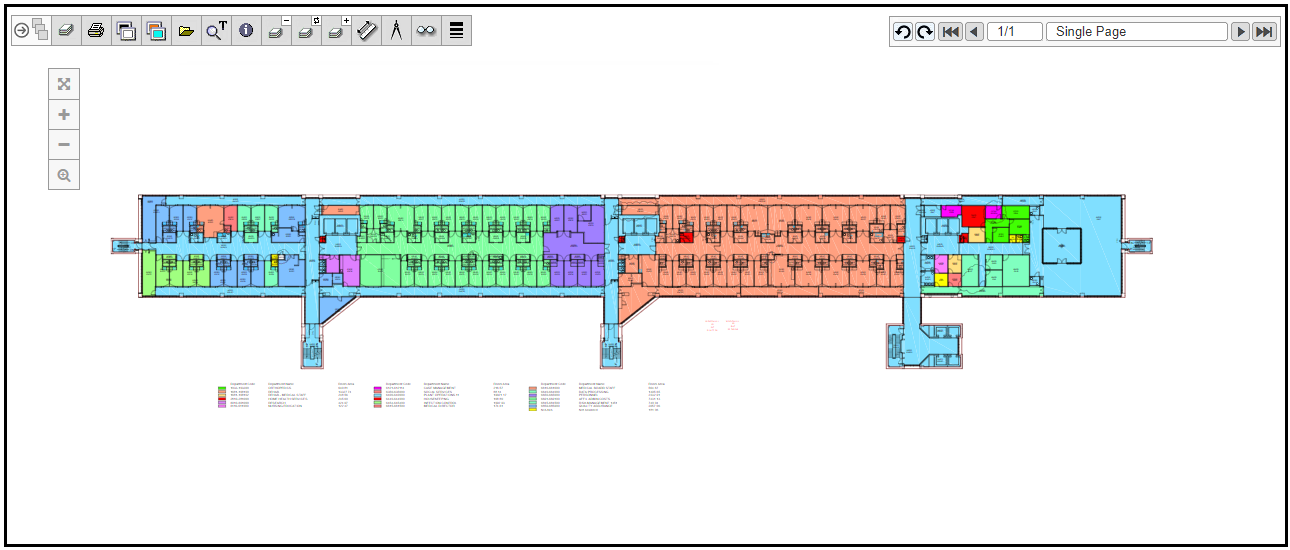

CADViewer Pro is set up with interactive modals for file-loading and redlines. Links with AutoXchange 2020 for own server on-the-fly conversion control of CAD drawings.

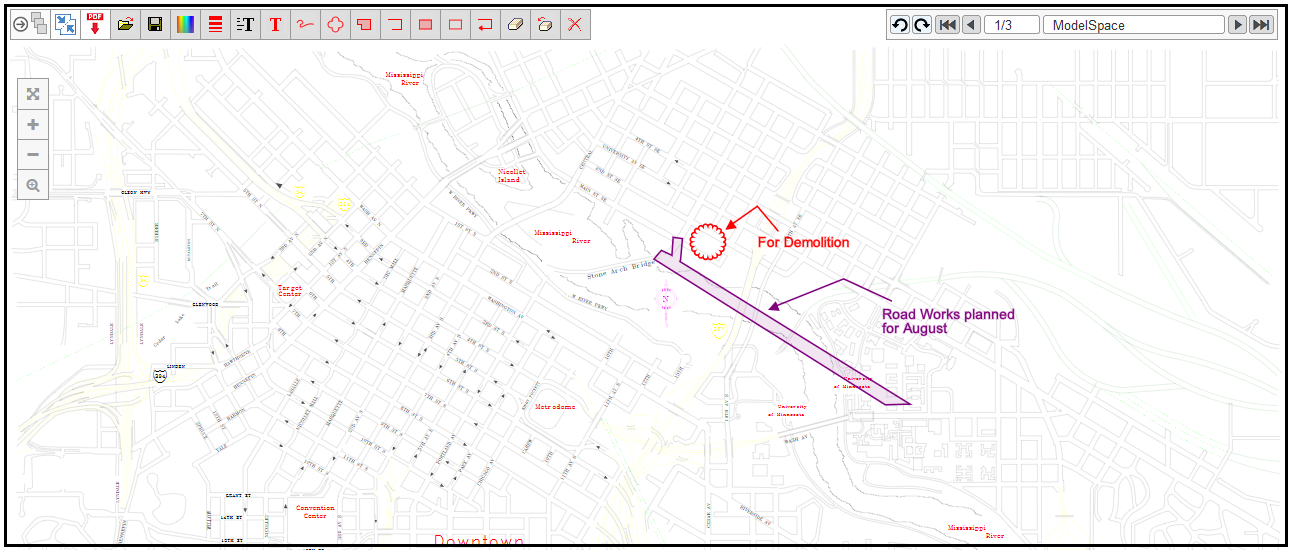

Redline control icon disk displayed at load. Links with AutoXchange for own server on-the-fly conversion control of CAD drawings.

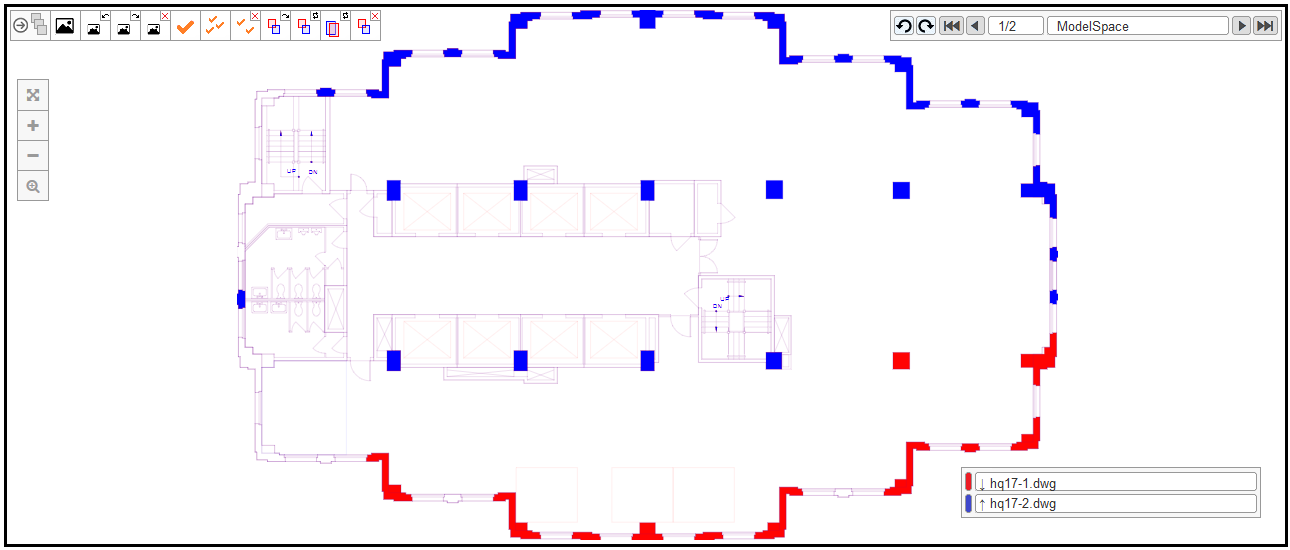

Sample with compare drawings menu page activated (icon menu page three). Two drawings are loaded and overlaid to expose differencies.

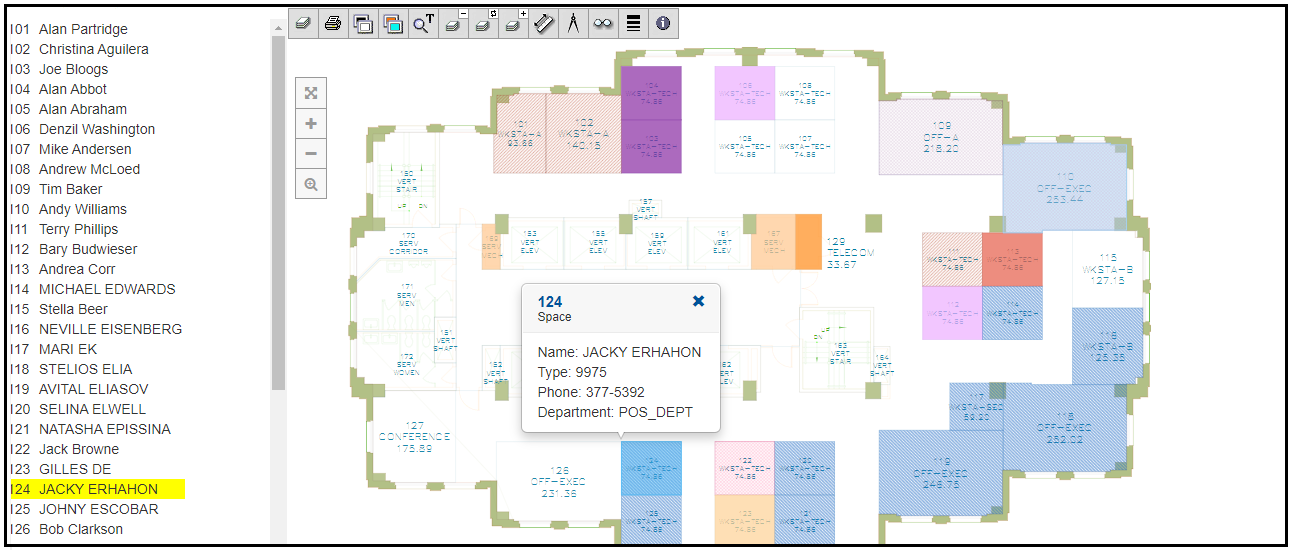

Visual Query: AngularJS and PHP are used with the CADViewer API to dynamically load content from a MySQL database for two-way interaction with content in drawing.

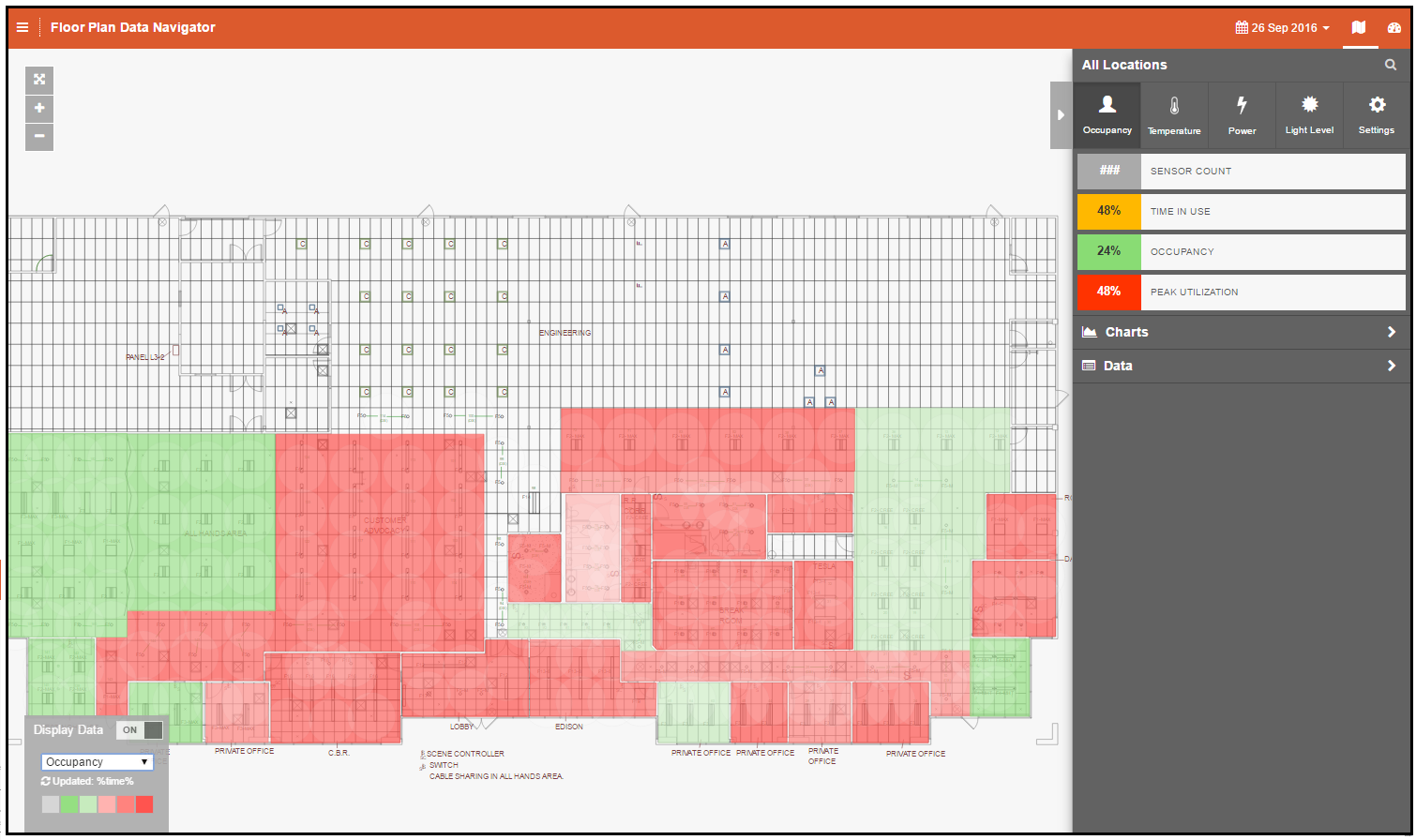

Sample implementation using CADViewer to dynamic highlight locations and sensor cones based on senser readings of Occupancy, Temperature, Power and Light Level
